2021-2024 F-150 M-3000-HB Rear 1.5" Lowering Kit Shackles & Bushings

Manufacturer Part # M-3000-HB

SKU DT0390

Original price $179.95 - Original price $179.95
Original price
$179.95 - $179.95
Current price $179.95
5+ in stock, ready to be shipped

Free Shipping on Orders Over $50

•Brand New
•Ford Performance part # M-3000-HB
•Fits 2021-2024 Ford F-150 Regular Cab, SuperCab, and SuperCrew (Fits both 2WD & 4WD)
•Reduces rear ride height approximately 1.5", giving you more of the leveled, sport truck stance you want

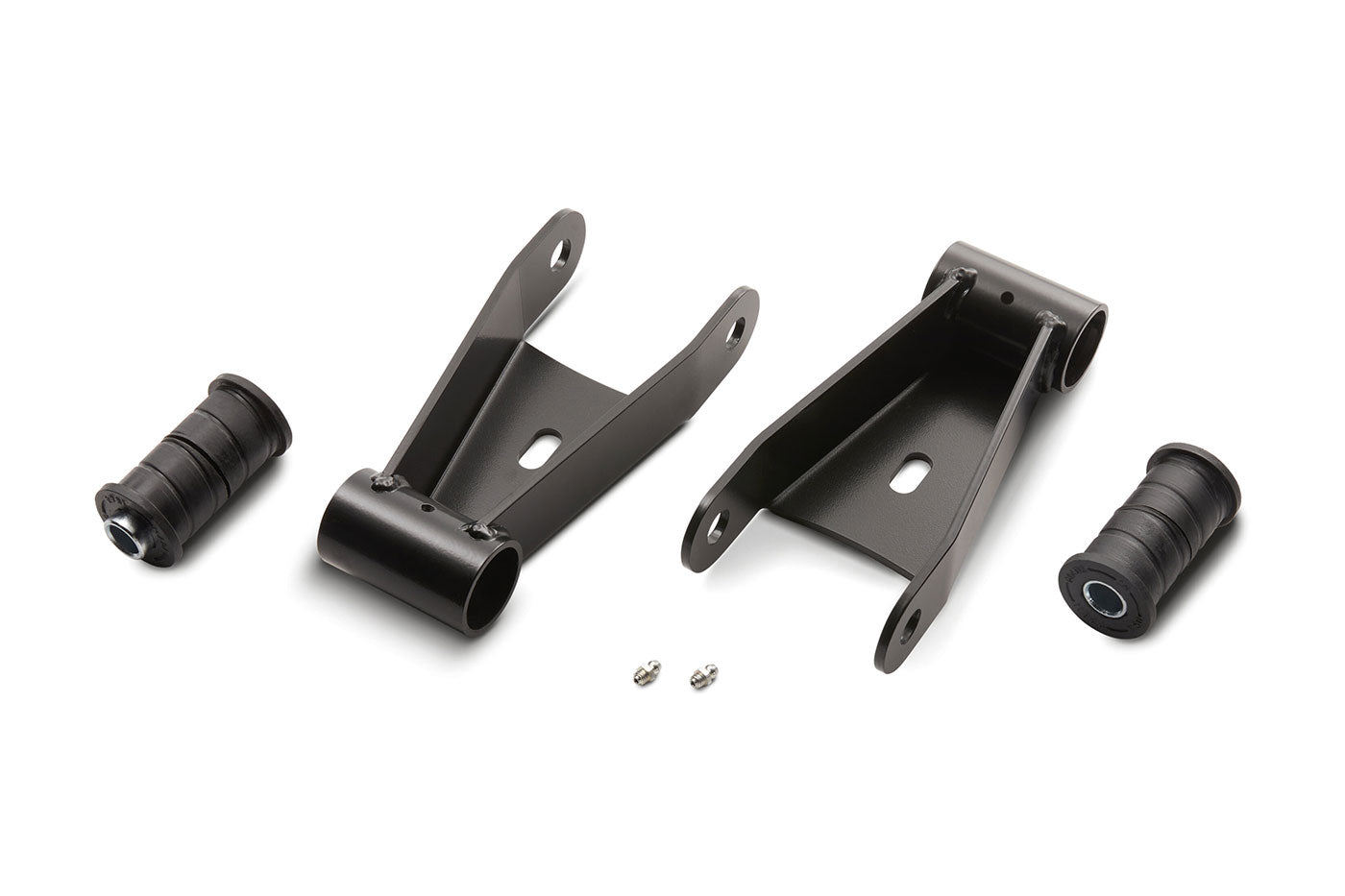

•Kit includes laser-cut steel lowering shackles with urethane bushings
•Grease fitting added to lower shackle tube
•Bushing grease groove improvements
•DOM center tube tolerance improvements
•Does not require shims for installation

Customer Reviews

Based on 5 reviews
Mark M
Quick to install. Provides about a 1.25” drop

These were fairly simple to install using the method where you jack up the diff to remove the top shackle bolts above the frame rail (go watch a YouTube video). I netted around 1.25” drop on my regular cab truck. No vibration at low speeds with just these installed.

Some assembly is required- you will need to press the urethane bushings into the shackles. I had a press, which made it very easy. Also make sure you grease everything well.

Truck rode better with more weight now on the rear tires, less rear bounce. Would install again! Going to pull the blocks my 4x4 came with and add 2.5 deg shims under the leaf springs next, should further remove the rake and help the ride.

Shown in photo ground, to fender measurements: front 37”, rear 40” (was 41.25”).

edward henson
Getting straight

Put my 2023 long bed regular cab where Iwanted t.


Great price and fast shipping on quality products

Great kit

Bought this for my 22 f150 lariat 502a 4x4 5.0v8. Wanted to raise the front end at first but this was way cheaper and easier. I did this in my driveway in about 1.5 hours with an extra hand. These newer 14 gen trucks rear end sticks up too much for me. I got roughly 1 inch drop out of these.

Bryce L
2021-2023 F-150 M-3000-HB Rear 1.5" Lowering Kit

The install of the shackles was fairly straight forward. It does not look like the bolt will clear the frame, however if you keep jacking up the differential it will clear. The shackles brought my rear down by 1 5/8". No calibration of cameras was needed and the truck looks great! I have noticed the truck is a little stiffer in the rear end and I do notice it on harsh bumps.
